REST API

All API requests can be made by ActivityTimeline user with Administrator permission only.

ActivityTimeline REST API is turned off by default. You must turn it on before the first use.

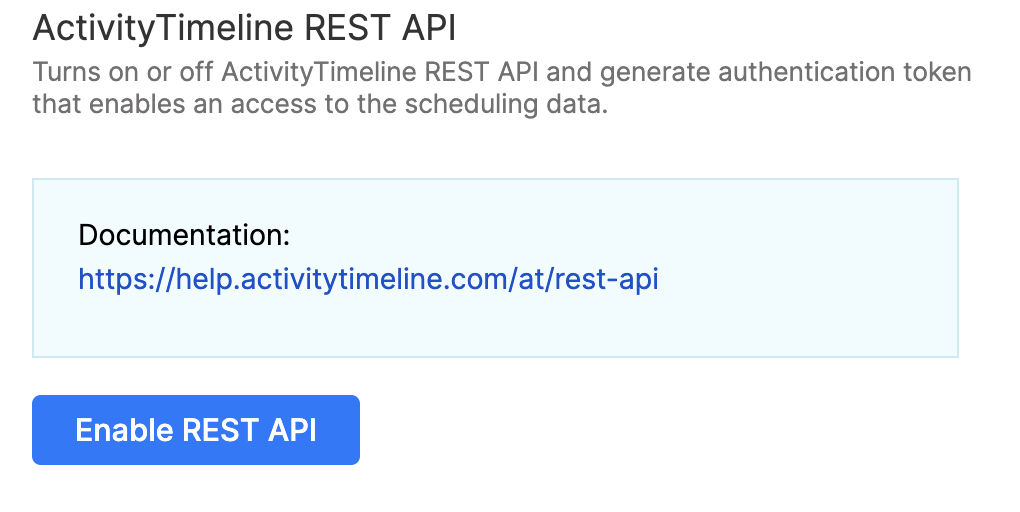

ActivityTimeline REST API can be turned on by changing ActivityTimeline REST API setting at AT REST API page in the Configuration:

How to Use REST API

  1. Create a unique AT REST API authorization token in ActivityTimeline configuration

  2. Call API methods with specifying that auth-token as a request Header or URL parameter (or auth_token before AT v8.3.0).

Sample Java/C# code of AT REST API usage

Sample Java project that demonstrates how to call AT REST API can be downloaded here (all API methods):

Sample .NET (C#) project that demonstrates how to call AT REST API can be downloaded here (some API methods):

Important Note when calling AT REST API from JavaScript/Node.js code.

ActivityTimeline uses number identifiers that could be larger than JavaScript number type supports.
As a result, some JavaScript JSON parsers replace the last few digits of an 'id' with zeros making that 'id' invalid.
Example: Actual 'id' of 1235598463805867311 becomes 1235598463805867300

Authorization

You can authorize into the REST API by specifying a unique Authorization Token in one of 4 supported ways:

  • Add auth-token Header with the value of your Authorization Token (preferred) V8.3.0+

  • Add auth-token URL parameter with the value of your Authorization Token V8.3.0+

  • DEPRECATED Add auth_token Header with the value of your Authorization Token

  • DEPRECATED Add auth_token URL parameter with the value of your Authorization Token

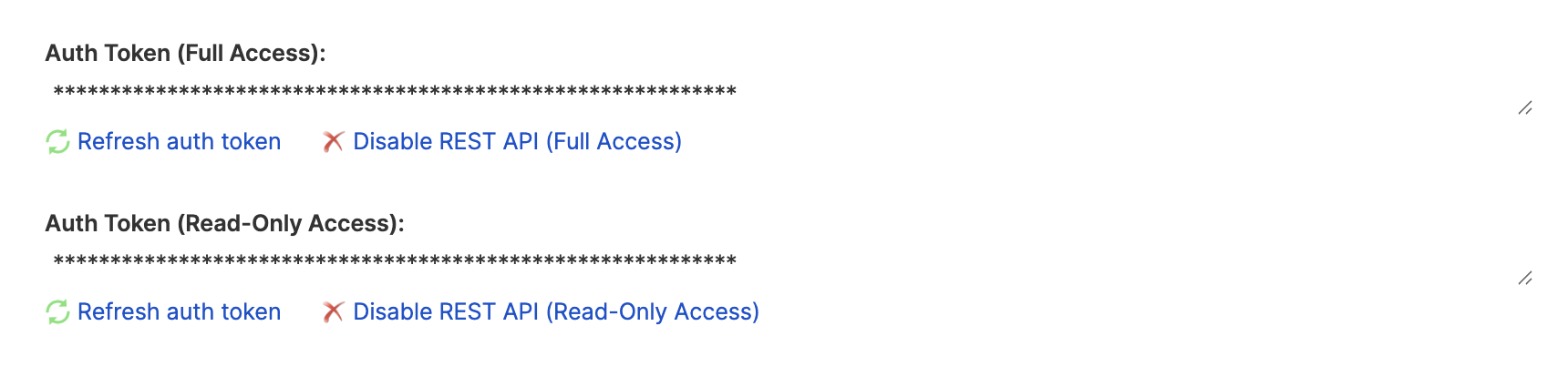

Authorization Token can be generated at ActivityTimeline Configuration → AT REST API page. Handle it with the same security as you would a password.

Methods:

Timeline Schedule & Workload  V4.2.0+

GET /rest/api/1/timeline?auth_token=YOUR_AUTH_TOKEN

Returns information about user and events (Jira issues and custom events) for specified user for specified period of time.


Request

CODE
GET /rest/api/1/timeline?auth_token=YOUR_AUTH_TOKEN

QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

teamId *

long

Id of a specific team

eventType

string

Optional

If specified then the system will filter returned items to the specified type.

  • supported custom event type names: BOOKING, DAY_OFF, HOLIDAY,
    NOTE, PLACEHOLDER, SICK_LEAVE, VACATION.

  • ISSUE for Jira issues only,

  • WORKLOG for Jira worklogs only,

  • empty - return all items in a period.

jql

string

V10.4.0+

Optional

If specified then the system will filter the issues based on the provided JQL filter query.

Also, you may specify jqlWithNonWorkingEvents=true parameter to keep the custom non Jira events in the output (like bookings, placeholders, vacations, holidays, sick leaves etc).

* indicates required parameters

Example

CODE
https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline?teamId=1234567890&start=2016-07-11&end=2016-07-18&auth_token=YOUR_AUTH_TOKEN

https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline?teamId=1234567890&start=2018-11-30&end=2019-01-01&eventType=HOLIDAY&auth_token=YOUR_AUTH_TOKEN

https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline?teamId=1234567890&start=2018-11-30&end=2019-01-01&eventType=BOOKING&auth_token=YOUR_AUTH_TOKEN

https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline?teamId=1234567890&start=2018-11-30&end=2019-01-01&eventType=ISSUE&auth_token=YOUR_AUTH_TOKEN

https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline?teamId=1234567890&start=2018-11-30&end=2019-01-01&eventType=WORKLOG&auth_token=YOUR_AUTH_TOKEN

Responses


STATUS 200 application/json Returns json representation of the result if request performed successfully.
Example
CODE
{
    "id": "1107507732947945188",
    "name": "External Team",
    "members": [
        {
            "id": "3786270175247354575",
            "involvement": 8,
            "personPosition": {
                "id": "8582213406392863840",
                "positionNameLong": "QA",
                "positionDescription": "QA Engineer"
            },
            "userRealName": "Amy Kartel",
            "email": "amy.kartel@company.com",
            "enabled": true,
            "username": "amy.kartel",
            "issues": [
                {
                    "id": "273688659851364550",
                    "issueId": 20003,
                    "issueKey": "TRP-10",
                    "summary": "[TRP-10] Incorrect wording on a label",
                    "plannedStart": "2016-07-13",
                    "plannedEnd": "2016-07-13",
                    "due": "",
                    "color": "Red",
                    "issueType": "JIRA_ISSUE",
                    "originalTimeEstimate": 0,
                    "remainingTimeEstimate": 0
                },
                {
                    "id": "10913502816060634",
                    "issueId": null,
                    "issueKey": "TRPae98fee1-96c1-4b0b-ada6-dd138e12e693",
                    "summary": "[Booking] Reperi Product | potential work",
                    "plannedStart": "2016-07-14",
                    "plannedEnd": "2016-07-15",
                    "due": "",
                    "color": null,
                    "issueType": "BOOKING",
                    "originalTimeEstimate": 7200,
                    "remainingTimeEstimate": 7200,
                    "estimatePerWorkDay": "yes",
                    "extraLink": "",
                    "approvedBy": null
                },
                {
                    "id": "4960169761522796814",
                    "issueId": 16802,
                    "issueKey": "TA-8",
                    "summary": "[TA-8] Choose ISP",
                    "plannedStart": "2016-07-14",
                    "plannedEnd": "2016-07-14",
                    "due": "",
                    "color": "None",
                    "issueType": "JIRA_ISSUE",
                    "originalTimeEstimate": 0,
                    "remainingTimeEstimate": 0
                },
                {
                    "id": "4445216931731619881",
                    "issueId": null,
                    "issueKey": "_AT_2db7247c-a0f5-4e3b-bfe5-4baf1df566fa",
                    "summary": "[Day Off] out of the office",
                    "plannedStart": "2016-07-11",
                    "plannedEnd": "2016-07-12",
                    "due": "",
                    "color": "Yellow",
                    "issueType": "DAY_OFF",
                    "originalTimeEstimate": 0,
                    "remainingTimeEstimate": 0,
                    "extraLink": "",
                    "approvedBy": null
                }
            ]
        },
        {
            "id": "4759616025136811794",
            "involvement": 4,
            "personPosition": {
                "id": "3712124335976172354",
                "positionNameLong": "Consultant",
                "positionDescription": null
            },
            "userRealName": "Bob Robinson",
            "email": "bob.robinson@company.com",
            "enabled": true,
            "username": "bob.robinson",
            "issues": [
                {
                    "id": "6068295962237947803",
                    "issueId": 15103,
                    "issueKey": "TDES-1",
                    "summary": "[TDES-1] Two new graphics",
                    "plannedStart": "2016-07-11",
                    "plannedEnd": "2016-07-22",
                    "due": "",
                    "color": null,
                    "issueType": "JIRA_ISSUE",
                    "originalTimeEstimate": 57600,
                    "remainingTimeEstimate": 144000
                }
            ]
        },
        {
            "id": "2612086174493854452",
            "involvement": 8,
            "personPosition": null,
            "userRealName": "Janny Miller",
            "email": "janny.miller@company.com",
            "enabled": true,
            "username": "janny.miller",
            "issues": [
                {
                    "id": "3121097772564302182",
                    "issueId": 15106,
                    "issueKey": "TDES-4",
                    "summary": "[TDES-4] Update default layout",
                    "plannedStart": "2016-07-12",
                    "plannedEnd": "2016-07-12",
                    "due": "",
                    "color": null,
                    "issueType": "JIRA_ISSUE",
                    "originalTimeEstimate": 14400,
                    "remainingTimeEstimate": 5400
                },
                {
                    "id": "3954119684277487799",
                    "issueId": 15105,
                    "issueKey": "TDES-3",
                    "summary": "[TDES-3] Update title styles",
                    "plannedStart": "2016-07-11",
                    "plannedEnd": "2016-07-11",
                    "due": "",
                    "color": "Purple",
                    "issueType": "JIRA_ISSUE",
                    "originalTimeEstimate": 0,
                    "remainingTimeEstimate": 0
                },
                {
                    "id": "4134472451282322432",
                    "issueId": 15100,
                    "issueKey": "TRP-1",
                    "summary": "[TRP-1] Implement Data Migration Script",
                    "plannedStart": "2016-07-13",
                    "plannedEnd": "2016-07-15",
                    "due": "",
                    "color": null,
                    "issueType": "JIRA_ISSUE",
                    "originalTimeEstimate": 57600,
                    "remainingTimeEstimate": 86400
                },
                {
                    "id": "41351470354940514",
                    "issueId": null,
                    "issueKey": "TRPddc956ec-bb5b-4201-85ab-8f4f32f50e2c",
                    "summary": "[Placeholder | TRP-4] Add Print dialog",
                    "plannedStart": "2016-07-12",
                    "plannedEnd": "2016-07-12",
                    "due": "",
                    "color": null,
                    "issueType": "PLACEHOLDER",
                    "originalTimeEstimate": 7200,
                    "remainingTimeEstimate": 7200,
                    "placeholderIssueKey": "TRP-4",
                    "extraLink": "",
                    "approvedBy": null
                }
            ]
        }
    ]
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/timeline/$username?auth_token=YOUR_AUTH_TOKEN

Returns information about user and events (Jira issues and custom events) for specified user for specified period of time.


Request

CODE
GET /rest/api/1/timeline/$username?auth_token=YOUR_AUTH_TOKEN

QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

username *

string

Username or accountId of specific user

eventType

string

Optional

If specified then the system will filter returned items to the specified type.

  • supported custom event type names: BOOKING, DAY_OFF, HOLIDAY,
    NOTE, PLACEHOLDER, SICK_LEAVE, VACATION.

  • ISSUE for Jira issues only,

  • WORKLOG for Jira worklogs only,

  • empty - return all items in a period.

jql

string

V10.4.0+

Optional

If specified then the system will filter the issues based on the provided JQL filter query.

Also, you may specify jqlWithNonWorkingEvents=true parameter to keep the custom non Jira events in the output (like bookings, placeholders, vacations, holidays, sick leaves etc).

* indicates required parameters

Example

CODE
https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline/admin?start=2016-07-11&end=2016-07-18&auth_token=YOUR_AUTH_TOKEN

https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline/admin?start=2018-11-30&end=2019-01-01&eventType=HOLIDAY&auth_token=YOUR_AUTH_TOKEN

https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline/admin?start=2018-11-30&end=2019-01-01&eventType=BOOKING&auth_token=YOUR_AUTH_TOKEN

https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline/admin?start=2018-11-30&end=2019-01-01&eventType=ISSUE&auth_token=YOUR_AUTH_TOKEN

https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/timeline/admin?start=2018-11-30&end=2019-01-01&eventType=WORKLOG&auth_token=YOUR_AUTH_TOKEN

Responses


STATUS 200 application/json Returns json representation of the result if request performed successfully.
Example
CODE
{
    "id": "2641502681345183593",
    "involvement": 8.0,
    "personPosition": null,
    "userRealName": "Administrator",
    "email": "admin@company.com",
    "enabled": true,
    "username": "admin",
    "issues": [{
        "id": "1800561052349910244",
        "issueId": null,
        "issueKey": "_AT_-ce48f923-bb20-47c1-8a71-95aaa2742d6f",
        "summary": "Placeholder",
        "plannedStart": "2020-07-29",
        "plannedEnd": "2020-07-29",
        "due": "",
        "color": "Green",
        "issueType": "PLACEHOLDER",
        "originalTimeEstimate": 18000,
        "remainingTimeEstimate": 18000,
        "placeholderIssueKey": null,
        "extraLink": "",
        "approvedBy": null
    }, {
        "id": "2163682457033067837",
        "issueId": null,
        "issueKey": "ADP-eb93d739-4aa7-4b1b-9b19-7b283d3b6442",
        "summary": "[Placeholder | ADP-69] Test",
        "plannedStart": "2020-07-28",
        "plannedEnd": "2020-07-28",
        "due": "",
        "color": "Green",
        "issueType": "PLACEHOLDER",
        "originalTimeEstimate": 18000,
        "remainingTimeEstimate": 18000,
        "placeholderIssueKey": "ADP-69",
        "extraLink": "",
        "approvedBy": null
    }, {
        "id": "4519045037419348631",
        "issueId": null,
        "issueKey": "ADP-6a2eb537-bf08-4403-a07a-2e8c8b520994",
        "summary": "[Placeholder | ADP-63] My team issue",
        "plannedStart": "2020-07-30",
        "plannedEnd": "2020-07-30",
        "due": "",
        "color": "Green",
        "issueType": "PLACEHOLDER",
        "originalTimeEstimate": 225000,
        "remainingTimeEstimate": 225000,
        "placeholderIssueKey": "ADP-63",
        "extraLink": "",
        "approvedBy": null
    }, {
        "id": "7749083366501270133",
        "issueId": null,
        "issueKey": "ADP-74f4b492-a4b9-432e-a463-cda63a7d447c",
        "summary": "[Placeholder | ADP-66] API issue",
        "plannedStart": "2020-07-27",
        "plannedEnd": "2020-07-27",
        "due": "",
        "color": "Green",
        "issueType": "PLACEHOLDER",
        "originalTimeEstimate": 0,
        "remainingTimeEstimate": 248400,
        "placeholderIssueKey": "ADP-66",
        "extraLink": "",
        "approvedBy": null
    }]
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/workload?auth_token=YOUR_AUTH_TOKEN

Returns information about users and workloads for specified team for specified period of time.


Request

CODE
GET /rest/api/1/workload?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

teamId *

long

id of specified team

projectKey

string

Optional ActivityTimeline v8.1.2 and above
The system will output the per-user workload per specific project if
projectKey parameter is set

startOffset

int

Offset for first users, default is 0

maxUsers

int

Maximum users count to return, max 50

includeProjectDetails

boolean

Optional Activity Timeline v8.2.0 and above
If set to 'true" then the app will return break down of hours per project key.

Example:
CODE
"username": "amy.kartel",
"workload": [
    {
        "day": "2021-07-12",
        "day0fWeek" : "mon",
        "hours": {
            "ABC": 4,
            "CDF": 2,
            "AMS": 0.5
        }
    },
    {
        "day": "2021-07-13",
        "day0fWeek": "tue",
        "hours": 0
    },
    ..........
    {
        "day": "2021-07-16",
        "dayOfWeek": "fri",
        "hours": {
              "CDF": 7,
              "AMS": 1
        }
    }
]

jql

string

V10.4.0+

Optional

If specified then the system will filter the issues based on the provided JQL filter query.

Also, you may specify jqlWithNonWorkingEvents=true parameter to keep the custom non Jira events in the output (like bookings, placeholders, vacations, holidays, sick leaves etc).

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/workload?start=2016-07-11&end=2016-07-18&teamId=1107507732947945188&startOffset=0&maxUsers=50&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns json representation of the result if request performed successfully.
Example
CODE
{
    "id": "1107507732947945188",
    "name": "External Team",
    "members": [
        {
            "id": "3786270175247354575",
            "involvement": 8,
            "personPosition": {
                "id": "8582213406392863840",
                "positionNameLong": "QA",
                "positionDescription": "QA Engineer"
            },
            "userRealName": "Amy Kartel",
            "email": "amy.kartel@company.com",
            "enabled": true,
            "username": "amy.kartel",
            "workload": [
                {
                    "day": "2016-07-10",
                    "dayOfWeek": "sun",
                    "hours": -1000
                },
                {
                    "day": "2016-07-11",
                    "dayOfWeek": "mon",
                    "hours": -2000
                },
                {
                    "day": "2016-07-12",
                    "dayOfWeek": "tue",
                    "hours": -2000
                },
                {
                    "day": "2016-07-13",
                    "dayOfWeek": "wed",
                    "hours": 0
                },
                {
                    "day": "2016-07-14",
                    "dayOfWeek": "thu",
                    "hours": 2
                },
                {
                    "day": "2016-07-15",
                    "dayOfWeek": "fri",
                    "hours": 2
                },
                {
                    "day": "2016-07-16",
                    "dayOfWeek": "sat",
                    "hours": -1000
                },
                {
                    "day": "2016-07-17",
                    "dayOfWeek": "sun",
                    "hours": -1000
                },
                {
                    "day": "2016-07-18",
                    "dayOfWeek": "mon",
                    "hours": 0
                },
                {
                    "day": "2016-07-19",
                    "dayOfWeek": "tue",
                    "hours": 0
                }
            ]
        },
        {
            "id": "4759616025136811794",
            "involvement": 4,
            "personPosition": {
                "id": "3712124335976172354",
                "positionNameLong": "Consultant",
                "positionDescription": null
            },
            "userRealName": "Bob Robinson",
            "email": "bob.robinson@company.com",
            "enabled": true,
            "username": "bob.robinson",
            "workload": [
                {
                    "day": "2016-07-10",
                    "dayOfWeek": "sun",
                    "hours": -1000
                },
                {
                    "day": "2016-07-11",
                    "dayOfWeek": "mon",
                    "hours": 4
                },
                {
                    "day": "2016-07-12",
                    "dayOfWeek": "tue",
                    "hours": 4
                },
                {
                    "day": "2016-07-13",
                    "dayOfWeek": "wed",
                    "hours": 4
                },
                {
                    "day": "2016-07-14",
                    "dayOfWeek": "thu",
                    "hours": 4
                },
                {
                    "day": "2016-07-15",
                    "dayOfWeek": "fri",
                    "hours": 4
                },
                {
                    "day": "2016-07-16",
                    "dayOfWeek": "sat",
                    "hours": -1000
                },
                {
                    "day": "2016-07-17",
                    "dayOfWeek": "sun",
                    "hours": -1000
                },
                {
                    "day": "2016-07-18",
                    "dayOfWeek": "mon",
                    "hours": 4
                },
                {
                    "day": "2016-07-19",
                    "dayOfWeek": "tue",
                    "hours": 4
                }
            ]
        },
        {
            "id": "2612086174493854452",
            "involvement": 8,
            "personPosition": null,
            "userRealName": "Janny Miller",
            "email": "janny.miller@company.com",
            "enabled": true,
            "username": "janny.miller",
            "workload": [
                {
                    "day": "2016-07-10",
                    "dayOfWeek": "sun",
                    "hours": -1000
                },
                {
                    "day": "2016-07-11",
                    "dayOfWeek": "mon",
                    "hours": 0
                },
                {
                    "day": "2016-07-12",
                    "dayOfWeek": "tue",
                    "hours": 3.5
                },
                {
                    "day": "2016-07-13",
                    "dayOfWeek": "wed",
                    "hours": 8
                },
                {
                    "day": "2016-07-14",
                    "dayOfWeek": "thu",
                    "hours": 8
                },
                {
                    "day": "2016-07-15",
                    "dayOfWeek": "fri",
                    "hours": 8
                },
                {
                    "day": "2016-07-16",
                    "dayOfWeek": "sat",
                    "hours": -1000
                },
                {
                    "day": "2016-07-17",
                    "dayOfWeek": "sun",
                    "hours": -1000
                },
                {
                    "day": "2016-07-18",
                    "dayOfWeek": "mon",
                    "hours": 0
                },
                {
                    "day": "2016-07-19",
                    "dayOfWeek": "tue",
                    "hours": 0
                }
            ]
        }
    ]
}


STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/workload/$username?auth_token=YOUR_AUTH_TOKEN (since v8.3.0)

Returns information about user and workloads for specified user for specified period of time.


Request

CODE
GET /rest/api/1/workload/$username?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

username *

string

Username or accountId of specific user

jql

string

V10.4.0+

Optional

If specified then the system will filter the issues based on the provided JQL filter query.

Also, you may specify jqlWithNonWorkingEvents=true parameter to keep the custom non Jira events in the output (like bookings, placeholders, vacations, holidays, sick leaves etc).

* indicates required parameters


Example

CODE
https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/workload/admin?start=2020-07-01&end=2020-07-30&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns json representation of the result if request performed successfully.
Example
CODE
{
    "id": "2641502681345183593",
    "involvement": 8.0,
    "personPosition": null,
    "userRealName": "Administrator",
    "email": "admin@company.com",
    "enabled": true,
    "username": "admin",
    "workload": [{
        "day": "2020-07-01",
        "hours": 0,
        "dayOfWeek": "wed"
    }, {
        "day": "2020-07-02",
        "hours": 0,
        "dayOfWeek": "thu"
    }, {
        "day": "2020-07-03",
        "hours": 0,
        "dayOfWeek": "fri"
    }, {
        "day": "2020-07-04",
        "hours": 0,
        "dayOfWeek": "sat"
    }, {
        "day": "2020-07-05",
        "hours": 0,
        "dayOfWeek": "sun"
    }, {
        "day": "2020-07-06",
        "hours": 0,
        "dayOfWeek": "mon"
    }, {
        "day": "2020-07-07",
        "hours": 0,
        "dayOfWeek": "tue"
    }, {
        "day": "2020-07-08",
        "hours": 0,
        "dayOfWeek": "wed"
    }, {
        "day": "2020-07-09",
        "hours": 0,
        "dayOfWeek": "thu"
    }, {
        "day": "2020-07-10",
        "hours": 0,
        "dayOfWeek": "fri"
    }, {
        "day": "2020-07-11",
        "hours": 0,
        "dayOfWeek": "sat"
    }, {
        "day": "2020-07-12",
        "hours": 0,
        "dayOfWeek": "sun"
    }, {
        "day": "2020-07-13",
        "hours": 0,
        "dayOfWeek": "mon"
    }, {
        "day": "2020-07-14",
        "hours": 0,
        "dayOfWeek": "tue"
    }, {
        "day": "2020-07-15",
        "hours": 0,
        "dayOfWeek": "wed"
    }, {
        "day": "2020-07-16",
        "hours": 0,
        "dayOfWeek": "thu"
    }, {
        "day": "2020-07-17",
        "hours": 0,
        "dayOfWeek": "fri"
    }, {
        "day": "2020-07-18",
        "hours": 0,
        "dayOfWeek": "sat"
    }, {
        "day": "2020-07-19",
        "hours": 0,
        "dayOfWeek": "sun"
    }, {
        "day": "2020-07-20",
        "hours": 0,
        "dayOfWeek": "mon"
    }, {
        "day": "2020-07-21",
        "hours": 0,
        "dayOfWeek": "tue"
    }, {
        "day": "2020-07-22",
        "hours": 0,
        "dayOfWeek": "wed"
    }, {
        "day": "2020-07-23",
        "hours": 0,
        "dayOfWeek": "thu"
    }, {
        "day": "2020-07-24",
        "hours": 0,
        "dayOfWeek": "fri"
    }, {
        "day": "2020-07-25",
        "hours": 0,
        "dayOfWeek": "sat"
    }, {
        "day": "2020-07-26",
        "hours": 0,
        "dayOfWeek": "sun"
    }, {
        "day": "2020-07-27",
        "hours": 0,
        "dayOfWeek": "mon"
    }, {
        "day": "2020-07-28",
        "hours": 0,
        "dayOfWeek": "tue"
    }, {
        "day": "2020-07-29",
        "hours": 0,
        "dayOfWeek": "wed"
    }, {
        "day": "2020-07-30",
        "hours": 62.5,
        "dayOfWeek": "thu"
    }, {
        "day": "2020-07-31",
        "hours": 0,
        "dayOfWeek": "fri"
    }]
}


STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/availability?auth_token=YOUR_AUTH_TOKEN (since v9.5.4)

Returns information about availability of users of a specific team for a specified period of time.
User’s availability means how many hours of work user still has capacity to do taking into account currently scheduled tasks on that user.


Request

CODE
GET /rest/api/1/availability?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

teamId *

long

id of specified team

startOffset

int

Offset for first users, default is 0

maxUsers

int

Maximum users count to return, max 50

jql

string

V10.4.0+

Optional

If specified then the system will filter the issues based on the provided JQL filter query.

Also, you may specify jqlWithNonWorkingEvents=true parameter to keep the custom non Jira events in the output (like bookings, placeholders, vacations, holidays, sick leaves etc).

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/availability?start=2023-02-11&end=2023-02-18&teamId=5648895637201243664&startOffset=0&maxUsers=50&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns json representation of the result if request performed successfully.
Example
CODE
{
   "id":"5648895637201243664",
   "name":"Sample Team",
   "members":[
      {
         "id":"5412165287981567372",
         "involvement":8.0,
         "personPosition":null,
         "userRealName":"Fefofi",
         "email":"person@company.com",
         "enabled":true,
         "username":"63c83eb49d59ec705fedddddd",
         "availability":[
            {
               "day":"2023-02-11",
               "hours":"0",
               "dayOfWeek":"sat"
            },
            {
               "day":"2023-02-12",
               "hours":"0",
               "dayOfWeek":"sun"
            },
            {
               "day":"2023-02-13",
               "hours":"8",
               "dayOfWeek":"mon"
            },
            {
               "day":"2023-02-14",
               "hours":"8",
               "dayOfWeek":"tue"
            },
            {
               "day":"2023-02-15",
               "hours":"8",
               "dayOfWeek":"wed"
            },
            {
               "day":"2023-02-16",
               "hours":"8",
               "dayOfWeek":"thu"
            },
            {
               "day":"2023-02-17",
               "hours":"8",
               "dayOfWeek":"fri"
            },
            {
               "day":"2023-02-18",
               "hours":"0",
               "dayOfWeek":"sat"
            }
         ]
      }
   ]
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/availability/$username?auth_token=YOUR_AUTH_TOKEN (since v9.5.4)

Returns information about availability of a specific user for a specified period of time.
User’s availability means how many hours of work user still has capacity to do taking into account currently scheduled tasks on that user.


Request

CODE
GET rest/api/1/availability/$username?auth_token==YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

jql

string

V10.4.0+

Optional

If specified then the system will filter the issues based on the provided JQL filter query.

Also, you may specify jqlWithNonWorkingEvents=true parameter to keep the custom non Jira events in the output (like bookings, placeholders, vacations, holidays, sick leaves etc).

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/availability/63c83eb49d59ec705dddddd?start=2023-02-11&end=2023-02-18&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns json representation of the result if request performed successfully.
Example
CODE
{
   "id":"5412165287981567372",
   "involvement":8.0,
   "personPosition":null,
   "userRealName":"Fefofi",
   "email":"person@company.com",
   "enabled":true,
   "username":"63c83eb49d59ec705fdddddd",
   "availability":[
      {
         "day":"2023-02-11",
         "hours":"0",
         "dayOfWeek":"sat"
      },
      {
         "day":"2023-02-12",
         "hours":"0",
         "dayOfWeek":"sun"
      },
      {
         "day":"2023-02-13",
         "hours":"8",
         "dayOfWeek":"mon"
      },
      {
         "day":"2023-02-14",
         "hours":"8",
         "dayOfWeek":"tue"
      },
      {
         "day":"2023-02-15",
         "hours":"8",
         "dayOfWeek":"wed"
      },
      {
         "day":"2023-02-16",
         "hours":"8",
         "dayOfWeek":"thu"
      },
      {
         "day":"2023-02-17",
         "hours":"8",
         "dayOfWeek":"fri"
      },
      {
         "day":"2023-02-18",
         "hours":"0",
         "dayOfWeek":"sat"
      }
   ]
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/capacity?auth_token=YOUR_AUTH_TOKEN (since v9.5.4)

Returns information about total capacity of users of a specific team for a specified period of time.
User’s capacity means how many hours of work user can do each day ignoring currently scheduled tasks on that user.


Request

CODE
GET /rest/api/1/capacity?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

teamId *

long

id of specified team

startOffset

int

Offset for first users, default is 0

maxUsers

int

Maximum users count to return, max 50

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/capacity?start=2023-02-11&end=2023-02-18&teamId=5648895637201243664&startOffset=0&maxUsers=50&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns json representation of the result if request performed successfully.
Example
CODE
{
   "id":"5648895637201243664",
   "name":"Sample Team",
   "members":[
      {
         "id":"5412165287981567372",
         "involvement":8.0,
         "personPosition":null,
         "userRealName":"Fefofi",
         "email":"person@company.com",
         "enabled":true,
         "username":"63c83eb49d59ec70dddddd",
         "capacity":[
            {
               "day":"2023-02-11",
               "hours":"0",
               "dayOfWeek":"sat"
            },
            {
               "day":"2023-02-12",
               "hours":"0",
               "dayOfWeek":"sun"
            },
            {
               "day":"2023-02-13",
               "hours":"8",
               "dayOfWeek":"mon"
            },
            {
               "day":"2023-02-14",
               "hours":"8",
               "dayOfWeek":"tue"
            },
            {
               "day":"2023-02-15",
               "hours":"8",
               "dayOfWeek":"wed"
            },
            {
               "day":"2023-02-16",
               "hours":"8",
               "dayOfWeek":"thu"
            },
            {
               "day":"2023-02-17",
               "hours":"8",
               "dayOfWeek":"fri"
            },
            {
               "day":"2023-02-18",
               "hours":"0",
               "dayOfWeek":"sat"
            }
         ]
      }
   ]
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/capacity/$username?auth_token=YOUR_AUTH_TOKEN (since v9.5.4)

Returns information about total capacity of a specific user for a specified period of time.
User’s capacity means how many hours of work user can do each day ignoring currently scheduled tasks on that user.


Request

CODE
GET rest/api/1/capacity/$username?auth_token==YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/capacity/63c83eb49d59ec705dddddd?start=2023-02-11&end=2023-02-18&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns json representation of the result if request performed successfully.
Example
CODE
{
   "id":"5412165287981567372",
   "involvement":8.0,
   "personPosition":null,
   "userRealName":"Fefofi",
   "email":"person@company.com",
   "enabled":true,
   "username":"63c83eb49d59ec705dddddd",
   "capacity":[
      {
         "day":"2023-02-11",
         "hours":"0",
         "dayOfWeek":"sat"
      },
      {
         "day":"2023-02-12",
         "hours":"0",
         "dayOfWeek":"sun"
      },
      {
         "day":"2023-02-13",
         "hours":"8",
         "dayOfWeek":"mon"
      },
      {
         "day":"2023-02-14",
         "hours":"8",
         "dayOfWeek":"tue"
      },
      {
         "day":"2023-02-15",
         "hours":"8",
         "dayOfWeek":"wed"
      },
      {
         "day":"2023-02-16",
         "hours":"8",
         "dayOfWeek":"thu"
      },
      {
         "day":"2023-02-17",
         "hours":"8",
         "dayOfWeek":"fri"
      },
      {
         "day":"2023-02-18",
         "hours":"0",
         "dayOfWeek":"sat"
      }
   ]
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

Custom events   V4.5.5+

POST /rest/api/1/event?auth_token=YOUR_AUTH_TOKEN

Creates a new custom event.


Request

CODE
POST /rest/api/1/event?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

username *

string

Assignee username (Jira Server) or accountld (Jira Cloud)

eventTypeld *

long

id of eventType

eventTitle *

string

Title of event

projectKey (optional)

string

Key of target project (Booking, Placeholder and Note types)

hours (optional)

number

Booking event estimate in hours / hours for partial Day Off event

estimate (optional)

number

Estimate in hours for Placeholder event type
Available starting from AT v7.3.5

color (optional)

string

Set custom Color for the newly created event.
Possible values:
Red Orange Yellow Green Blue Purple
Violet Livid Teal Silver Olive Gray

Available starting from AT v9.5.5

isApproved (optional)

string

If set to "true" then custom event will be created pre-approved.
Applicable to Placeholder, Vacation and Booking event types.
Available starting from AT v5.0.7

teamId (optional)

number

Id of a team. A new event will be created on a Team Panel of that team.
Supported event types: Note, Booking and Placeholder (and custom event types based on those three types).
username parameter must not be specified if teamId parameter is specified.
Available starting from AT v9.7.0

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/event?username=admin&eventTypeId=240025532758377186&eventTitle=someTitle&projectKey=TPA&hours=7&start=2016-11-14&end=2016-11-14&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
	"users":["admin"],
	"message":"admin|||<b>Booking</b> has been successfully created for admin.",
	"result":true,
	"id":3728690601734324315
}


STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/event/$id?auth_token=YOUR_AUTH_TOKEN (since v9.3.2)

Get a single custom event data by id.


Request

CODE
GET /rest/api/1/event/$id?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

number

ID of custom event

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/event/29686068180042429?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns custom event JSON data.
Example
CODE
{
    "id": "29686068180042429",
    "issueId": null,
    "issueKey": "SCRUM2b4e3596-31f2-4099-bf80-89765656975",
    "projectKey": "SCRUM",
    "summary": "[Booking] Scrum Project | Reservation",
    "plannedStart": "2022-07-18",
    "plannedEnd": "2022-07-31",
    "due": "",
    "color": "Green",
    "issueType": "BOOKING",
    "originalTimeEstimate": 28800,
    "remainingTimeEstimate": 28800,
    "estimatePerWorkDay": "yes",
    "extraLink": "",
    "approvedBy": null,
    "username": "557058:387baa8b-b43f-452e-cee0-08965456768"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 404 Returns if custom event does not exist

STATUS 500 Returns if errors occurred during request

PUT /rest/api/1/event?auth_token=YOUR_AUTH_TOKEN (since v9.7.0)

Updates a custom event.


Request

CODE
PUT /rest/api/1/event?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long number

Id of a custom event to update

start *

string

New Start date of the scheduled period formatted in "yyyy-MM-dd" format

end *

string

New End date of the scheduled period formatted in "yyyy-MM-dd" format

username*

string

New Assignee username (Jira Server) or accountld (Jira Cloud)
to re-assign an item to

teamId (optional)

number

Id of Team to re-assign an item to / put an item on a Team Panel.
Supported event types: Note, Booking and Placeholder (and custom event types based on those three types).
If specified then username parameter is ignored.

title (optional)

string

New title for the item

projectKey (optional)

string

Key of target project (Booking, Placeholder, Overtime and Note types)

hours (optional)

number

Set estimate in hours per day for Issue / Issue part / Booking / Partial Day Off / Overtime events

estimate (optional)

number

Set total remaining estimate in hours for Placeholder events

color (optional)

string

New color for the event.
Possible values:
Red Orange Yellow Green Blue Purple
Violet Livid Teal Silver Olive Gray

isApproved (optional)

string

Defines whether event is approved or not (true - approved, false - not approved).
Applicable to Placeholder, Vacation and Booking event types.

* indicates required parameters

Example

CODE
https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/event/24002553275837718634?title=New%20Title&start=2023-11-14&end=2023-11-14&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
	"users":["admin"],
	"message":"admin|||<b>Booking</b> has been successfully updated for admin.",
	"result":true,
	"id":24002553275837718634
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

DELETE /rest/api/1/event/$id?auth_token=YOUR_AUTH_TOKEN

Deletes a custom event.


Request

CODE
DELETE /rest/api/1/event/$id?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

id of custom event

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/event/312463?auth_token=YOUR_AUTH_TOKEN

Responses


STATUS 200 application/json Returns success message.
Example
CODE
{
	"message":"Event has been successfully deleted!"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

POST /rest/api/1/event/$id/color?auth_token=YOUR_AUTH_TOKEN (since v9.5.5)

Updates color of an issue/event on the timeline.


Request

CODE
POST /rest/api/1/event/$id/color?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

id of custom event

color *

string

color of the event to be set.
Possible values:
Red Orange Yellow Green Blue Purple
Violet Livid Teal Silver Olive Gray

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/event/312463534535435/color?auth_token=YOUR_AUTH_TOKEN

Responses


STATUS 200 application/json Returns updated issue/event data.
Example
CODE
{
	"id": 312463534535435,
	......
	"summary": "Event title",
	"username": "bob.robinson"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 404 Returns if issue/event does not exist

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/eventType/list?auth_token=YOUR_AUTH_TOKEN

Returns a list of custom event types.


Request

CODE
GET /rest/api/1/eventType/list?auth_token=YOUR_AUTH_TOKEN


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/eventType/list?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns json representation of event types.
Example
CODE
[
	{
		"id":240025532758377186,
		"name":"Booking",
		"eventType":"BOOKING",
		"eventTypeIconUrl":"../images/jira/icons/eventTypes/at_booking.png",
		"isSystemEventType":true,
		"isMilestoneEventType":false
	},
    {
		"id":143598346239228823,
		"name":"Vacation",
		"eventType":"VACATION",
		"eventTypeIconUrl":"../images/jira/icons/eventTypes/at_vacation.png",
		"isSystemEventType":true,
		"isMilestoneEventType":false
	},
	{
		"id":308729741261950787,
		"name":"Placeholder",
		"eventType":"PLACEHOLDER",
		"eventTypeIconUrl":"../images/jira/icons/eventTypes/at_placeholder.png",
		"isSystemEventType":true,
		"isMilestoneEventType":false
	}
]

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

Teams   V8.3.0+

GET /rest/api/1/team/list?auth_token=YOUR_AUTH_TOKEN (since v4.5.5)

Returns list of Activity Timeline teams.

Request

CODE
GET /rest/api/1/team/list?auth_token=YOUR_AUTH_TOKEN


Responses

STATUS 200 application/json Returns json representation of the result if request performed successfully.

Example
CODE
[{
	"id": "1107507732947945188",
	"name": "External Team"
}, {
	"id": "387281612195971911",
	"name": "Developers Team"
}, {
	"id": "7756417552636331634",
	"name": "QA Team"
}]

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/team/$teamId?auth_token=YOUR_AUTH_TOKEN

Returns information about team and users in a specified team.


Request

CODE
GET /rest/api/1/team/$teamId?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

teamId *

long

id of specific team

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/team/1107507732947945188?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns json representation of the result if request performed successfully.
Example
CODE
{
    "id": "1107507732947945188",
    "name": "External Team",
    "members": [
        {
            "id": "3786270175247354575",
            "involvement": 8,
            "personPosition": {
                "id": "8582213406392863840",
                "positionNameLong": "QA",
                "positionDescription": "QA Engineer"
            },
            "userRealName": "Amy Kartel",
            "email": "amy.kartel@company.com",
            "enabled": true,
            "username": "amy.kartel",
            "skills": [
                {
                    "skill": {
                        "id": "6696288071248397937",
                        "skillName": "TESTING"
                    },
                    "level": {
                        "id": "2845444854505357930",
                        "levelName": "Advanced",
                        "levelColor": "#419B28",
                        "defaultLevel": false
                    }
                },
                {
                    "skill": {
                        "id": "9007657690122438304",
                        "skillName": "QA"
                    },
                    "level": {
                        "id": "2845444854505357930",
                        "levelName": "Advanced",
                        "levelColor": "#419B28",
                        "defaultLevel": false
                    }
                },
                {
                    "skill": {
                        "id": "5423046373371626385",
                        "skillName": "JIRA"
                    },
                    "level": {
                        "id": "8309150234355319522",
                        "levelName": "Intermediate",
                        "levelColor": "#FCA800",
                        "defaultLevel": true
                    }
                },
                {
                    "skill": {
                        "id": "495820420823861967",
                        "skillName": "TEST CASES"
                    },
                    "level": {
                        "id": "8309150234355319522",
                        "levelName": "Intermediate",
                        "levelColor": "#FCA800",
                        "defaultLevel": true
                    }
                },
                {
                    "skill": {
                        "id": "5159432958879026484",
                        "skillName": "TEST PLAN"
                    },
                    "level": {
                        "id": "7372549001497429227",
                        "levelName": "Basic",
                        "levelColor": "#C2D2E8",
                        "defaultLevel": false
                    }
                }
            ]
        },
        {
            "id": "4759616025136811794",
            "involvement": 4,
            "personPosition": {
                "id": "3712124335976172354",
                "positionNameLong": "Consultant",
                "positionDescription": null
            },
            "userRealName": "Bob Robinson",
            "email": "bob.robinson@company.com",
            "enabled": true,
            "username": "bob.robinson",
            "skills": [
                {
                    "skill": {
                        "id": "6393636176441000868",
                        "skillName": "CONSULTING"
                    },
                    "level": {
                        "id": "7372549001497429227",
                        "levelName": "Basic",
                        "levelColor": "#C2D2E8",
                        "defaultLevel": false
                    }
                },
                {
                    "skill": {
                        "id": "6433704713829763909",
                        "skillName": "EMAIL"
                    },
                    "level": {
                        "id": "8309150234355319522",
                        "levelName": "Intermediate",
                        "levelColor": "#FCA800",
                        "defaultLevel": true
                    }
                },
                {
                    "skill": {
                        "id": "2081234984920762007",
                        "skillName": "COMMUNICATION"
                    },
                    "level": {
                        "id": "2845444854505357930",
                        "levelName": "Advanced",
                        "levelColor": "#419B28",
                        "defaultLevel": false
                    }
                }
            ]
        },
        {
            "id": "2612086174493854452",
            "involvement": 8,
            "personPosition": null,
            "userRealName": "Janny Miller",
            "email": "janny.miller@company.com",
            "enabled": true,
            "username": "janny.miller",
            "skills": [
                {
                    "skill": {
                        "id": "4881094816891751527",
                        "skillName": "DESIGN"
                    },
                    "level": {
                        "id": "7372549001497429227",
                        "levelName": "Basic",
                        "levelColor": "#C2D2E8",
                        "defaultLevel": false
                    }
                },
                {
                    "skill": {
                        "id": "2918480463760540781",
                        "skillName": "PHOTOSHOP"
                    },
                    "level": {
                        "id": "8309150234355319522",
                        "levelName": "Intermediate",
                        "levelColor": "#FCA800",
                        "defaultLevel": true
                    }
                }
            ]
        }
    ]
}

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

DELETE /rest/api/1/team/$id?auth_token=YOUR_AUTH_TOKEN

Deletes team.

Request

CODE
DELETE /rest/api/1/team/$id?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

id of team

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/team/2782591321647696504?auth_token=YOUR_AUTH_TOKEN

Responses


STATUS 200 application/json Returns success message.
Example
CODE
{
    "message": "Team successfully deleted"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

POST /rest/api/1/team/$id/member?auth_token=YOUR_AUTH_TOKEN

Add user to the team.


Request

CODE
POST /rest/api/1/team/$id/member?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

Id of team

username *

string

Username of user who will be added to the team

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/team/2782591321647696504/member?auth_token=YOUR_AUTH_TOKEN&username=admin


Responses


STATUS 200 application/json Returns success message.
Example
CODE
{
	'message':'User successfully added to Team [BP] Business Project Team'
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

DELETE /rest/api/1/team/$id/member?auth_token=YOUR_AUTH_TOKEN

Remove user from the team.


Request

CODE
DELETE /rest/api/1/team/$id/member?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

id of team

username *

string

Username of user who will be removed from the team

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/team/2782591321647696504/member?auth_token=YOUR_AUTH_TOKEN&username=admin


Responses


STATUS 200 application/json Returns success message.
Example
CODE
{
	'message':'User successfully removed from Team [BP] Business Project  Team'
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/team/$id/manager?auth_token=YOUR_AUTH_TOKEN

Get the list of team managers.


Request

CODE
GET /rest/api/1/team/$id/manager?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

id of team

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/team/2782591321647696504/manager?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns success message.
Example
CODE
[{
    "fullName": "Administrator",
    "username": "admin"
}]

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

POST /rest/api/1/team/$id/manager?auth_token=YOUR_AUTH_TOKEN

Add team manager to the team.


Request

CODE
POST /rest/api/1/team/$id/manager?auth_token=YOUR_AUTH_TOKEN

QUERY PARAMETERS

Parameter

Type

Description

id *

long

id of team

username *

string

Username of user who will be added to the team managers

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/team/2782591321647696504/manager?auth_token=YOUR_AUTH_TOKEN&username=admin


Responses


STATUS 200 application/json Returns success message.
Example
CODE
{
    "message": "User successfully added to Team Managers"
}


STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request


DELETE /rest/api/1/team/$id/manager?auth_token=YOUR_AUTH_TOKEN

Remove user from the team managers.

Request

CODE
DELETE /rest/api/1/team/$id/manager?auth_token=YOUR_AUTH_TOKEN

QUERY PARAMETERS

Parameter

Type

Description

id *

long

id of team

username *

string

Username of user who will be removed from the team managers

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/team/2782591321647696504/manager?auth_token=YOUR_AUTH_TOKEN&username=admin


Responses


STATUS 200 application/json Returns success message.
Example
CODE
{
    "message": "User successfully removed from Team Managers."
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

Projects    V8.3.0+

GET /rest/api/1/project/list?auth_token=YOUR_AUTH_TOKEN

Returns list of Activity Timeline projects by portions of 100.


Request

CODE
GET /rest/api/1/project/list?auth_token=YOUR_AUTH_TOKEN

QUERY PARAMETERS

Parameter

Type

Description

startOffset

integer

Offset for the first project, default is 0

state V9.2.0+

string

If specified then only projects of specified state will be returned. Should be either "active" or "inactive"

* indicates required parameters


Responses

STATUS 200 application/json Returns json representation of the result if request performed successfully.

Example
CODE
[{
    "id": 230762418407883660,
    "name": "Sprint project",
    "projectKey": "SPRINT",
    "state": "inactive"
}, {
    "id": 385656806786155406,
    "name": "Agile adaptation",
    "projectKey": "AGILE",
    "state": "active"
}, {
    "id": 466697191147325533,
    "name": "New Features Proj",
    "projectKey": "NFP",
    "state": "active"
},  {
    "id": 847848775082921846,
    "name": "Project Managment",
    "projectKey": "PM",
    "state": "active"
},  {
    "id": 1074321572696248313,
    "name": "Automation Project",
    "projectKey": "AP",
    "state": "active"
}, {
    "id": 1414612396227578312,
    "name": "Business Project ",
    "projectKey": "BP",
    "state": "active"
}]

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

POST /rest/api/1/project/$id/state?auth_token=YOUR_AUTH_TOKEN

Change the project state between active (enabled in the app) and inactive (disabled in the app).


Request

CODE
POST /rest/api/1/project/$id/state?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

id of project

state *

string

Project state. Should be either "active" or "inactive"

* indicates required parameters

Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/project/1074321572696248313/state?auth_token=YOUR_AUTH_TOKEN&state=inactive


Responses


STATUS 200 application/json Returns success message.
Example
CODE
{
    "message": "Project successfully updated",
    "projectId": "1074321572696248313",
    "state": "inactive"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

Users    V8.3.0+

GET /rest/api/1/user?auth_token=YOUR_AUTH_TOKEN

Get paginated user list. Returns 100 users.


Request

CODE
GET /rest/api/1/user?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

startOffset *

string

Offset for first user, default is 0

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/user?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
[{
    "fullName": "Administrator",
    "username": "admin"
}, {
    "fullName": "Anna Jons",
    "username": "anna"
}, {
    "fullName": "Erik Plain",
    "username": "erik"
}]

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/user/$username?auth_token=YOUR_AUTH_TOKEN

Get detailed user data.


Request

CODE
GET /rest/api/1/user/$username?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

username *

string

Username or accountId of specific user

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/user/admin?auth_token=YOUR_AUTH_TOKEN

Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
    "fullName": "Administrator",
    "position": {
        "id": 6343917500869986762,
        "positionDescription": null,
        "positionNameLong": "Developer"
    },
    "skillLevels": [{
        "level": {
            "defaultLevel": false,
            "id": 3239422491610663746,
            "levelColor": "#FCA800",
            "levelName": "Intermediate"
        },
        "skill": {
            "id": "5038994036906348198",
            "skillName": "JAVA"
        }
    }],
    "username": "admin"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/user/$username/role?auth_token=YOUR_AUTH_TOKEN

Get detailed user data. V9.9.1+


Request

CODE
GET /rest/api/1/user/$username/role?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

username *

string

Username or accountId of specific user

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/user/johnsmith/role?auth_token=YOUR_AUTH_TOKEN

Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
  "username": "johnsmith",
  "fullName": "John Smith",
  "roles": [
    {
      "role": "Administrator"
    }
  ]
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/user/$username/skill?auth_token=YOUR_AUTH_TOKEN

Get user's skills.

Request

CODE
GET /rest/api/1/user/$username/skill?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

username *

string

Username or accountId of specific user

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/user/admin/skill?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
[{
    "level": {
        "defaultLevel": false,
        "id": 3239422491610663746,
        "levelColor": "#FCA800",
        "levelName": "Intermediate"
    },
    "skill": {
        "id": "5038994036906348198",
        "skillName": "JAVA"
    }
}]

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

DELETE /rest/api/1/user/$username/skill?auth_token=YOUR_AUTH_TOKEN

Remove all skills from the user.


Request

CODE
DELETE /rest/api/1/user/$username/skill?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

username *

string

Username or accountId of specific user

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/user/admin/skill?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
    "message": "Skills successfully removed from user.",
    "username": "admin"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

POST /rest/api/1/user/$username/skill/$skillId?auth_token=YOUR_AUTH_TOKEN

Assign a skill to user.

Request

CODE
POST /rest/api/1/user/$username/skill/$skillId?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

username *

string

Username or accountId of specific user

skillId

long

Skill ID

levelId

long

Level for assigned skill

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/user/admin/skill/356054081858522338?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
    "message": "Skill successfully assigned to user.",
    "skillId": 356054081858522338,
    "username": "admin"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

DELETE /rest/api/1/user/$username/skill/$skillId?auth_token=YOUR_AUTH_TOKEN

Remove a skill from the user.


Request

CODE
DELETE /rest/api/1/user/$username/skill/$skillId?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

username *

string

Username or accountId of specific user

skillId

long

Skill ID

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/user/admin/skill/356054081858522338?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
    "message": "Skill successfully removed from user.",
    "username": "admin"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

POST /rest/api/1/user/$username/position?auth_token=YOUR_AUTH_TOKEN

Add a position for the user.


Request

CODE
POST /rest/api/1/user/$username/position?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

username *

string

Username or accountId of specific user

positionId

long

Position D

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/user/admin/position?positionId=8219751323950402194&auth_token=YOUR_AUTH_TOKEN

Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
    "message": "Position successfully assigned to user",
    "username": "admin",
    "positionId": 8219751323950402194
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

DELETE /rest/api/1/user/$username/position?auth_token=YOUR_AUTH_TOKEN

Remove position from a user.


Request

CODE
DELETE /rest/api/1/user/$username/position?auth_token=YOUR_AUTH_TOKEN

QUERY PARAMETERS

Parameter

Type

Description

username *

string

Username or accountId of specific user

positionId

long

Position Id

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/user/admin/position?positionId=8219751323950402194&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
    "message": "Position successfully removed from user",
    "positionId": 8219751323950402194
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

Skills   V8.3.0+

POST /rest/api/1/skill?auth_token=YOUR_AUTH_TOKEN

Creates a new skill.

Request

CODE
POST /rest/api/1/skill?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

name *

string

Skill name

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/skill?name=skillName&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
    "message": "Skill SKILL_NAME successfully created!",
    "skillId": 2217128537518329713
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/skill?auth_token=YOUR_AUTH_TOKEN

Get paginated list of skills. Returns 100 skills


Request

CODE
GET /rest/api/1/skill?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

startOffset

int

Offset for the first skill, default is 0

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/skill?startOffSet=0&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
[{
    "id": "356054081858522338",
    "skillName": "API"
}, {
    "id": "2047937836421629992",
    "skillName": "JS"
}, {
    "id": "2698045061671109178",
    "skillName": "CSS"
}, {
    "id": "3109049378266500399",
    "skillName": "SQL"
},  {
    "id": "5038994036906348198",
    "skillName": "JAVA"
}]

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/skill/$id?auth_token=YOUR_AUTH_TOKEN

Get skill by Id.


Request

CODE
GET /rest/api/1/skill/$id?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id

long

Skill Id

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/skill/5038994036906348198?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
[{
    "level": {
        "id": 3239422491610663746,
        "levelName": "Intermediate"
    },
    "skill": {
        "id": "5038994036906348198",
        "skillName": "JAVA"
    },
    "users": [{
        "fullName": "Administrator",
        "username": "admin"
    }, {
        "fullName": "Erik Jons",
        "username": "erik"
    }]
}, {
    "level": {
        "id": 149100742758843112,
        "levelName": "Advanced"
    },
    "skill": {
        "id": "5038994036906348198",
        "skillName": "JAVA"
    },
    "users": [{
        "fullName": "Ana Lee",
        "username": "anna"
    }]
}]

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

POST /rest/api/1/skill/level?auth_token=YOUR_AUTH_TOKEN

Creates a new skill proficiency level.



Request

CODE
POST /rest/api/1/skill/level?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

name *

string

Skill proficiency level name

isDefault

boolean

Should it be the default proficiency level for new skills?

color *

string

Level color to display (HEX format), without hash symbol

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/skill/level?name=Expert&color=FCA800&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
    "message": "Level Expert successfully created!",
    "levelId": 8468734445048317988
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/skill/level?auth_token=YOUR_AUTH_TOKEN

Get paginated list of skill proficiency levels. Returns 100 skill levels


Request

CODE
GET /rest/api/1/skill/level?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

startOffset

int

Offset for the first level, default is 0

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/skill/level?auth_token=YOUR_AUTH_TOKEN



Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
[{
    "defaultLevel": false,
    "id": 149100742758843112,
    "levelColor": "#419B28",
    "levelName": "Advanced"
}, {
    "defaultLevel": false,
    "id": 2281499161498896296,
    "levelColor": "#03439C",
    "levelName": "Basic"
}, {
    "defaultLevel": false,
    "id": 3239422491610663746,
    "levelColor": "#FCA800",
    "levelName": "Intermediate"
}, {
    "defaultLevel": true,
    "id": 4033501717766817092,
    "levelColor": "#FCA800",
    "levelName": "Low"
}, {
    "defaultLevel": null,
    "id": 8468734445048317988,
    "levelColor": "#FCA800",
    "levelName": "Expert"
}]

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

Positions   V8.3.0+

POST /rest/api/1/position?auth_token=YOUR_AUTH_TOKEN

Creates a new user position.


Request

CODE
POST /rest/api/1/position?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

name *

string

User position name

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/position?name=Manager&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
    "message": "Position Manager successfully created!",
    "positionId": 3000053725301066422
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/position?auth_token=YOUR_AUTH_TOKEN

Get paginated list of positions. Returns 100 positions


Request

CODE
GET /rest/api/1/position?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

startOffset

int

Offset for the first position, default is 0

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/position?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
[{
    "id": 3000053725301066422,
    "positionDescription": "",
    "positionNameLong": "Manager"
}, {
    "id": 6265207833807701265,
    "positionDescription": "",
    "positionNameLong": "CEO"
}, {
    "id": 6343917500869986762,
    "positionDescription": null,
    "positionNameLong": "Developer"
}, {
    "id": 7828428543988420376,
    "positionDescription": null,
    "positionNameLong": "QA"
}, {
    "id": 8219751323950402194,
    "positionDescription": "",
    "positionNameLong": "Tester"
}]

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/position/$id?auth_token=YOUR_AUTH_TOKEN

Get user position by ID


Request

CODE
GET /rest/api/1/position/$id?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id

long

Position ID

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/position/5038994036906348198?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created event id and new assignee username.
Example
CODE
{
   "id": 6343917500869986762,
   "persons": [{
        "fullName": "Administrator",
        "username": "admin"
         }],
   "positionDescription": null,
   "positionNameLong": "Developer"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

Worklogs   V8.3.0+

POST /rest/api/1/worklog?auth_token=YOUR_AUTH_TOKEN

Add work log for current user or on behalf of other user.


Request

CODE
POST /rest/api/1/worklog?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

date *

string

Date for a worklog in "yyyy-MM-ddTHH:mm:ss±hh:mm" format.
Example: "2021-06-30T14:30:00+00:00”

username *

string

Username (Jira Server) or accountId (Jira Cloud) of the user who logs work hours

issueKey *

string

issueKey of issue

timeSpent *

string

The time spent working on the issue.
Examples: "1h", "4h 30m", "30m”

comment

string

A comment for the worklog

category

number

Worklog category id. Configurable in Default Billable (“0”)

* indicates required parameters


Example

CODE
https://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/worklog?username=Adam&date=2021-04-15%2001:14:00%20%2B0300&issueKey=KAN-175&timeSpent=1h&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns created worklog.
Example
CODE
{
    "approved": false,
    "approvedBy": "",
    "category": 0,
    "comment": "worklog comment",
    "date": "2021-04-15T01:14:00.000+03:00",
    "issueId": 12597,
    "issueKey": "KAN-175",
    "projectKey": "KAN",
    "timeSpent": 3600,
    "username": "557058:af2f543d-d6f7-4abc-a673-12355112323",
    "worklogId": 11667
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

PUT /rest/api/1/worklog/$id?auth_token=YOUR_AUTH_TOKEN

Updates existing worklog record.


Request

CODE
PUT /rest/api/1/worklog/$id?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

Worklog id

date *

string

Log work date in "yyyy-MM-ddTHH:mm:ss±hh:mm" format.
Example: "2021-06-30T14:30:00+00:00”

username *

string

Username (Jira Server) or accountId (Jira Cloud) of the user who updates worklog

timeSpent *

string

The time spent working on the issue.

comment

string

A comment for the worklog

category

number

Worklog category. Default Billable (“0”)

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/worklog/11667?username=Adam&date=2021-04-15 01:14:00 %2B0300&issueKey=KAN-175&timeSpent=1h&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns updated worklog.
Example
CODE
{
    "approved": false,
    "approvedBy": "",
    "category": 0,
    "comment": "",
    "date": "2021-04-15T01:14:00.000+03:00",
    "issueId": 12597,
    "issueKey": "KAN-175",
    "projectKey": "KAN",
    "timeSpent": 3600,
    "username": "557058:af2f543d-d6f7-4abc-a673-12355112323",
    "worklogId": 11667
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

DELETE /rest/api/1/worklog/$id?auth_token=YOUR_AUTH_TOKEN

Deletes a worklog record.


Request

CODE
DELETE /rest/api/1/worklog/$id?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

id of worklog

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/worklog/312463?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns success message.
Example
CODE
{
	"message":"Worklog has been successfully deleted!"
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/worklog/list?auth_token=YOUR_AUTH_TOKEN

Return a list of worklog records. Maximum 1000 worklog records per request.

Pass startOffset parameter to load the next portions of worklog records.



Request

CODE
GET /rest/api/1/worklog/list?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

start *

string

Start of the period formatted in "yyyy-MM-dd" format

end *

string

End of the period formatted in "yyyy-MM-dd" format

username

string

Username or Accountld of specific user.
If specified then returns worklogs from specific user only.

teamld

long

Id of specific team.
If specified then returns worklogs of specific team members only.

projectKey

string

Project Key of Jira project.
If specified then returns worklogs from specific project only.

startOffset

int

Offset for the first worklog in portion, default is 0.

category

byte

Worklog category. Default Billable (“0”). If specified then returns worklogs of specific category only.

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/worklog/list?start=2021-04-12&end=2021-04-20&auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns list of worklogs.
Example
CODE
[{
    "approved": false,
    "approvedBy": "",
    "category": 0,
    "comment": "",
    "date": "2021-04-13T03:14:00.000+03:00",
    "issueId": 12637,
    "issueKey": "BT-11",
    "projectKey": "BT",
    "timeSpent": 7200,
    "username": "557058:009e0ad2-70b5-4b95-862c-12355112323",
    "worklogId": 11649
}, {
    "approved": false,
    "approvedBy": "",
    "category": 0,
    "comment": "",
    "date": "2021-04-14T00:00:00.000+03:00",
    "issueId": 12637,
    "issueKey": "BT-11",
    "projectKey": "BT",
    "timeSpent": 7200,
    "username": "557058:009e0ad2-70b5-4b95-862c-12355112323",
    "worklogId": 11641
}, {
    "approved": false,
    "approvedBy": "",
    "category": 0,
    "comment": "",
    "date": "2021-04-14T00:00:00.000+03:00",
    "issueId": 12707,
    "issueKey": "KAN-259",
    "projectKey": "KAN",
    "timeSpent": 7200,
    "username": "557058:009e0ad2-70b5-4b95-862c-12355112323",
    "worklogId": 11639
}, {
    "approved": false,
    "approvedBy": "",
    "category": 0,
    "comment": "",
    "date": "2021-04-14T00:00:00.000+03:00",
    "issueId": 12637,
    "issueKey": "BT-11",
    "projectKey": "BT",
    "timeSpent": 7200,
    "username": "557058:009e0ad2-70b5-4b95-862c-12355112323",
    "worklogId": 11640
}]

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

PUT /rest/api/1/worklog/approve/$id?auth_token=YOUR_AUTH_TOKEN (since v9.7.9)

Approve a worklog record by a System.


Request

CODE
PUT /rest/api/1/worklog/approve/$id?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

Worklog id

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/worklog/approve/11667?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns updated worklog.
Example
CODE
{
    "approved": true,
    "approvedBy": "",
    "category": 0,
    "comment": "",
    "date": "2021-04-15T01:14:00.000+03:00",
    "issueId": 12597,
    "issueKey": "KAN-175",
    "projectKey": "KAN",
    "timeSpent": 3600,
    "username": "557058:af2f543d-d6f7-4abc-a673-12355112323",
    "worklogId": 11667
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions or the Timesheets Approval process is turned off in the settings

STATUS 404 Returns if worklog record is not found

STATUS 500 Returns if errors occurred during request

PUT /rest/api/1/worklog/unapprove/$id?auth_token=YOUR_AUTH_TOKEN (since v9.7.9)

Unapprove a worklog record.


Request

CODE
PUT /rest/api/1/worklog/unapprove/$id?auth_token=YOUR_AUTH_TOKEN


QUERY PARAMETERS

Parameter

Type

Description

id *

long

Worklog id

* indicates required parameters


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/worklog/unapprove/11667?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns updated worklog.
Example
CODE
{
    "approved": false,
    "approvedBy": "",
    "category": 0,
    "comment": "",
    "date": "2021-04-15T01:14:00.000+03:00",
    "issueId": 12597,
    "issueKey": "KAN-175",
    "projectKey": "KAN",
    "timeSpent": 3600,
    "username": "557058:af2f543d-d6f7-4abc-a673-12355112323",
    "worklogId": 11667
}

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions or the Timesheets Approval process is turned off in the settings

STATUS 404 Returns if worklog record is not found

STATUS 500 Returns if errors occurred during request

GET /rest/api/1/worklog/categories?auth_token=YOUR_AUTH_TOKEN

Return a list of worklog categories.


Request

CODE
GET /rest/api/1/worklog/categories?auth_token=YOUR_AUTH_TOKEN


Example

CODE
http://<ACTIVITYTIMELINE_INSTANCE>/rest/api/1/worklog/categories?auth_token=YOUR_AUTH_TOKEN


Responses


STATUS 200 application/json Returns list of worklog categories.
Example
CODE
[{
    "active": true,
    "id": 1,
    "name": "Non-Billable"
}, {
    "active": true,
    "id": 0,
    "name": "Billable"
}]

STATUS 400 Returns if incorrect input parameters were supplied

STATUS 401 Returns if user was not logged in

STATUS 403 Returns if user didn't have permissions

STATUS 500 Returns if errors occurred during request

JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.

Contact Support Close
